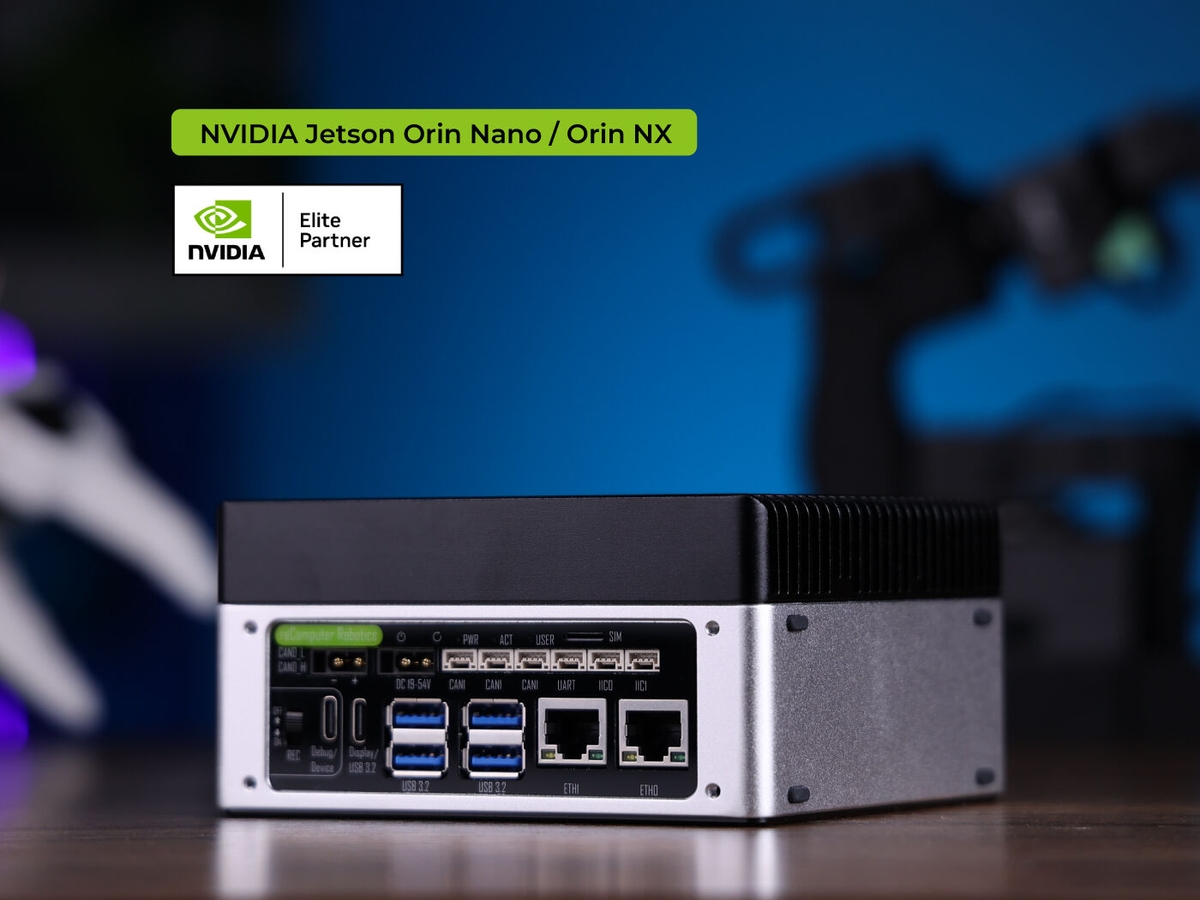

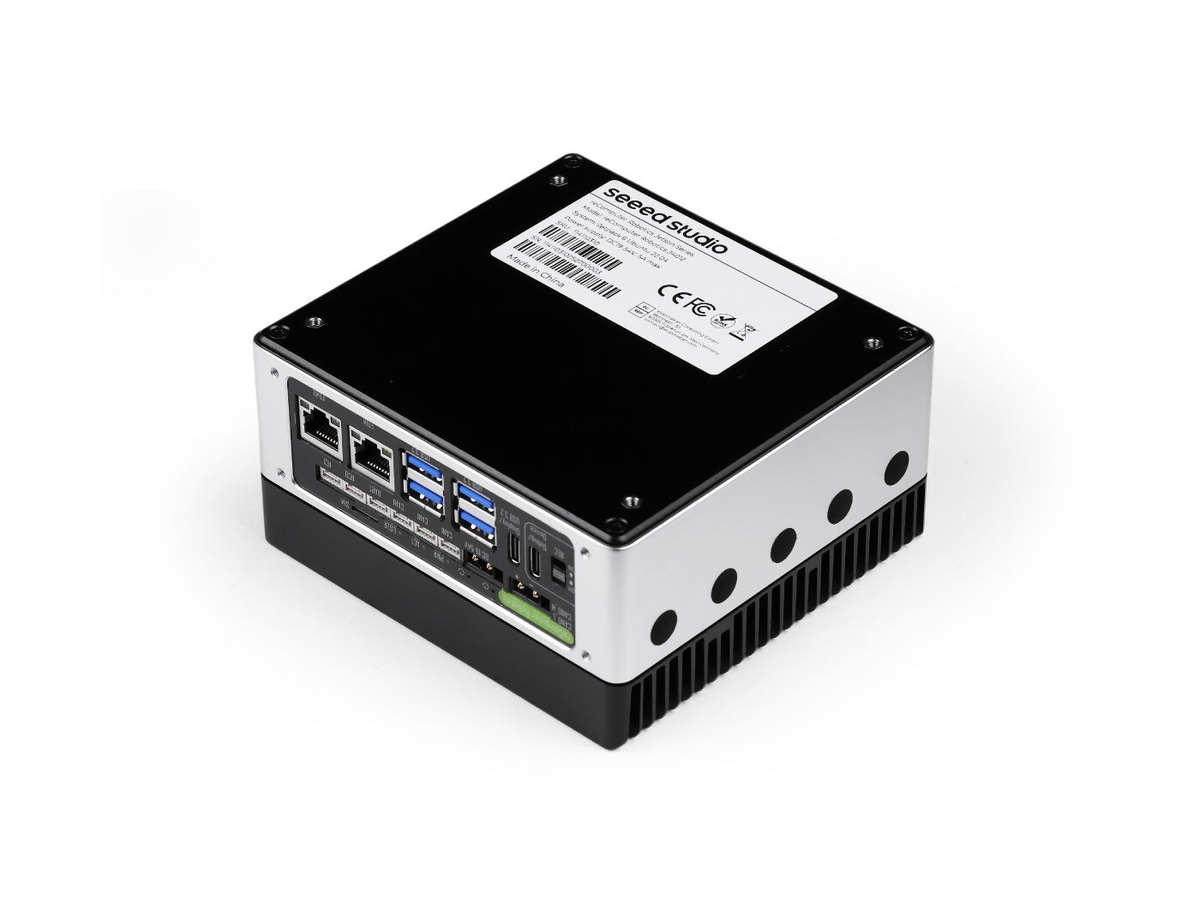

reComputer Robotics Series
reComputer Robotics Series is a compact yet powerful edge AI computer designed for fast development and deployment in robotics, delivering up to 157 TOPS of AI performance with rich I/O options and pre-installed Jetpack for immediate use in advanced robotics applications.
-
Robust Hardware DesignBoost power in a compact size: deliver up to 157 TOPS AI performance by NVIDIA Jetson Orin modules.
-
Multiple Interfaces for RoboticsIncluding dual RJ45, M.2 slots for 5G/Wi-Fi/BT modules, 6x USB 3.2, 2x CAN, GMSL2 (additional purchase), I2C, and UART, functioning as a powerful robotic brain.
-
Software-ready EcosystemPre-installed with JetPack 6.2 and Linux BSP for seamless deployment.
-
Application and BenefitIdeal for rapid development of autonomous robots, accelerating time-to-market with ready-to-use interfaces and optimized AI frameworks.
-
Robust Power & Thermal Design for DurabilityOperates reliably from –20°C to 60°C at 25W and up to 55°C in MAXN mode, fueled through a wide 19-54V DC input, ensuring stable operation in mobile and industrial robot environments.
-
Enhanced Performance with Super ModeEnhanced power management, improved higher frame rate processing, and reduced inference time for demanding AI applications.
reComputer Robotics Series - Intelligent Edge AI Computer with NVIDIA Jetson Orin
reComputer Robotics Series is a compact yet powerful edge AI computer designed for fast development and deployment in robotics. Delivering up to 157 TOPS of AI performance with rich I/O options (USB, Ethernet, CSI, CAN), it supports seamless multi-sensor integration and industrial applications. With wide DC power input (12–54V) and pre-installed Jetpack 6.2 + Linux BSP, it's ready for immediate use in advanced robotics applications.

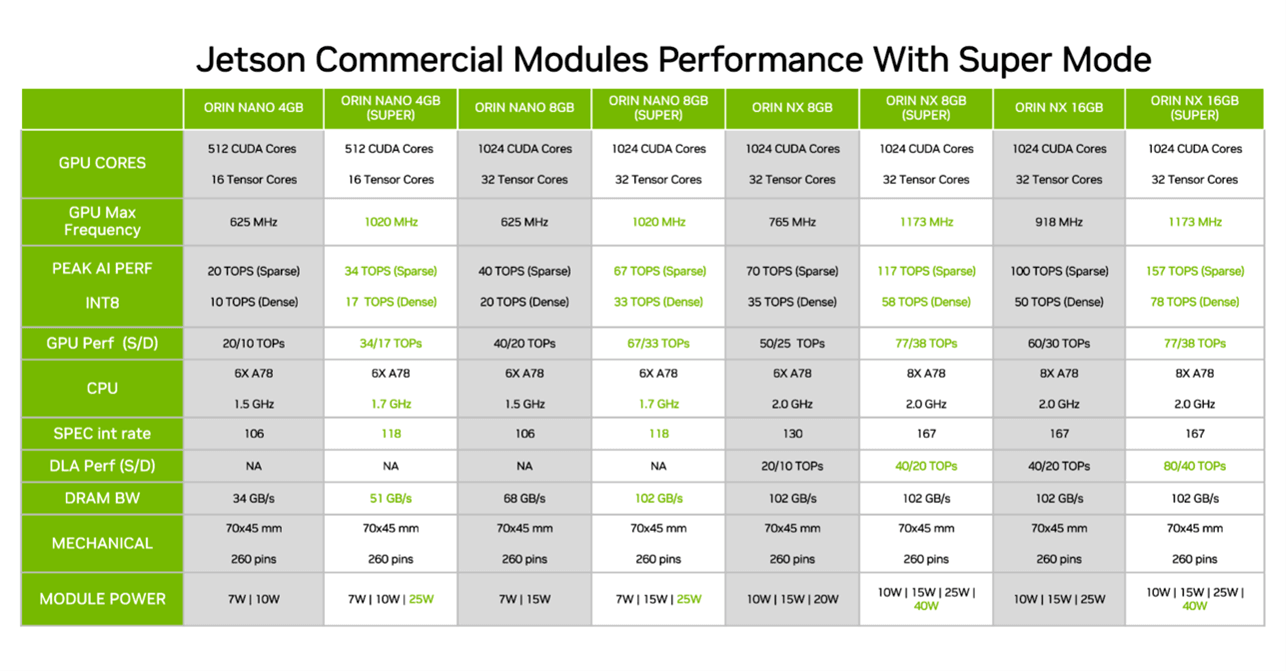

Jetson Modules Performance with Super Mode
- Enhanced power management
- Improved higher frame rate processing
- Reduced inference time

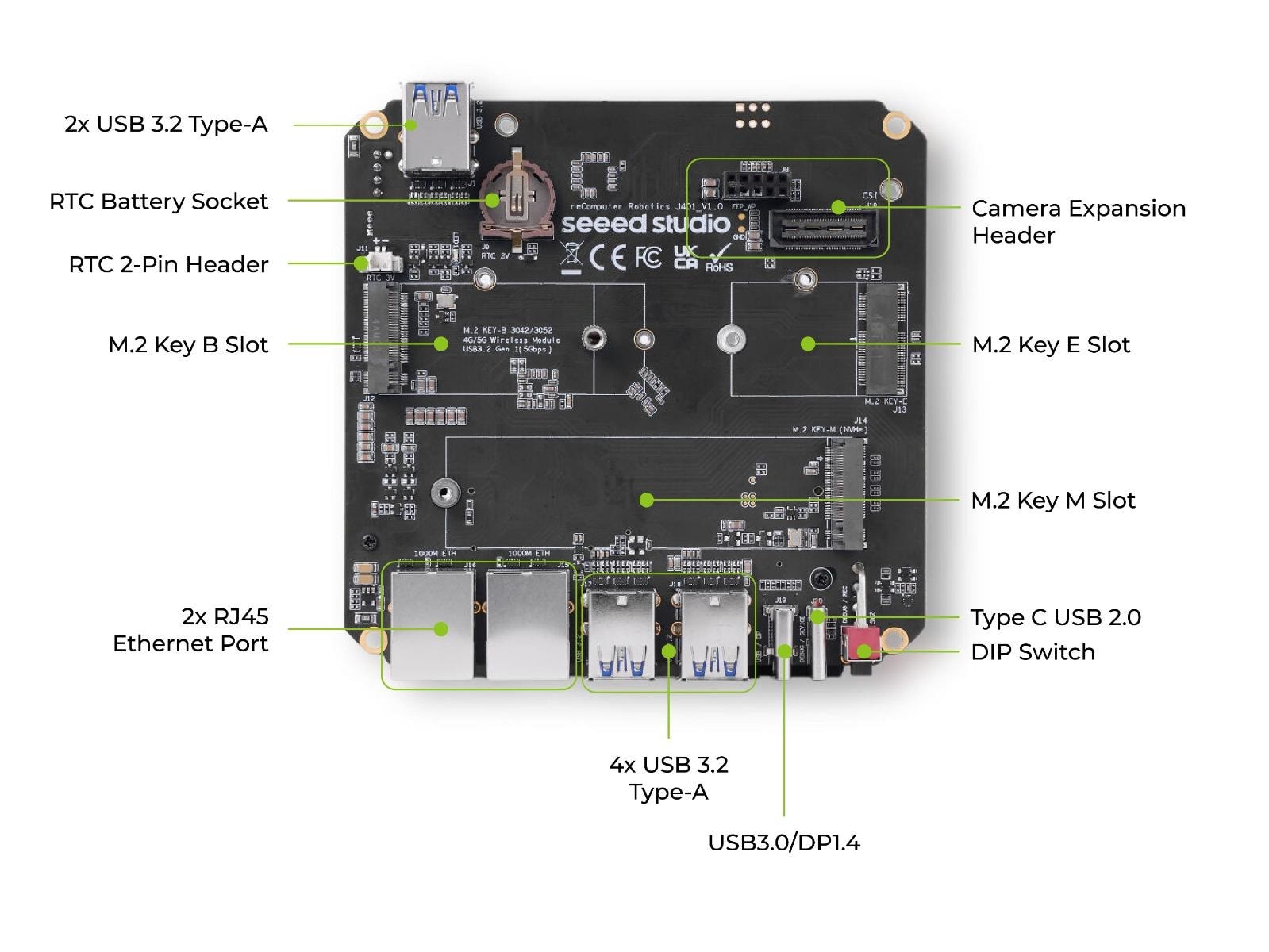

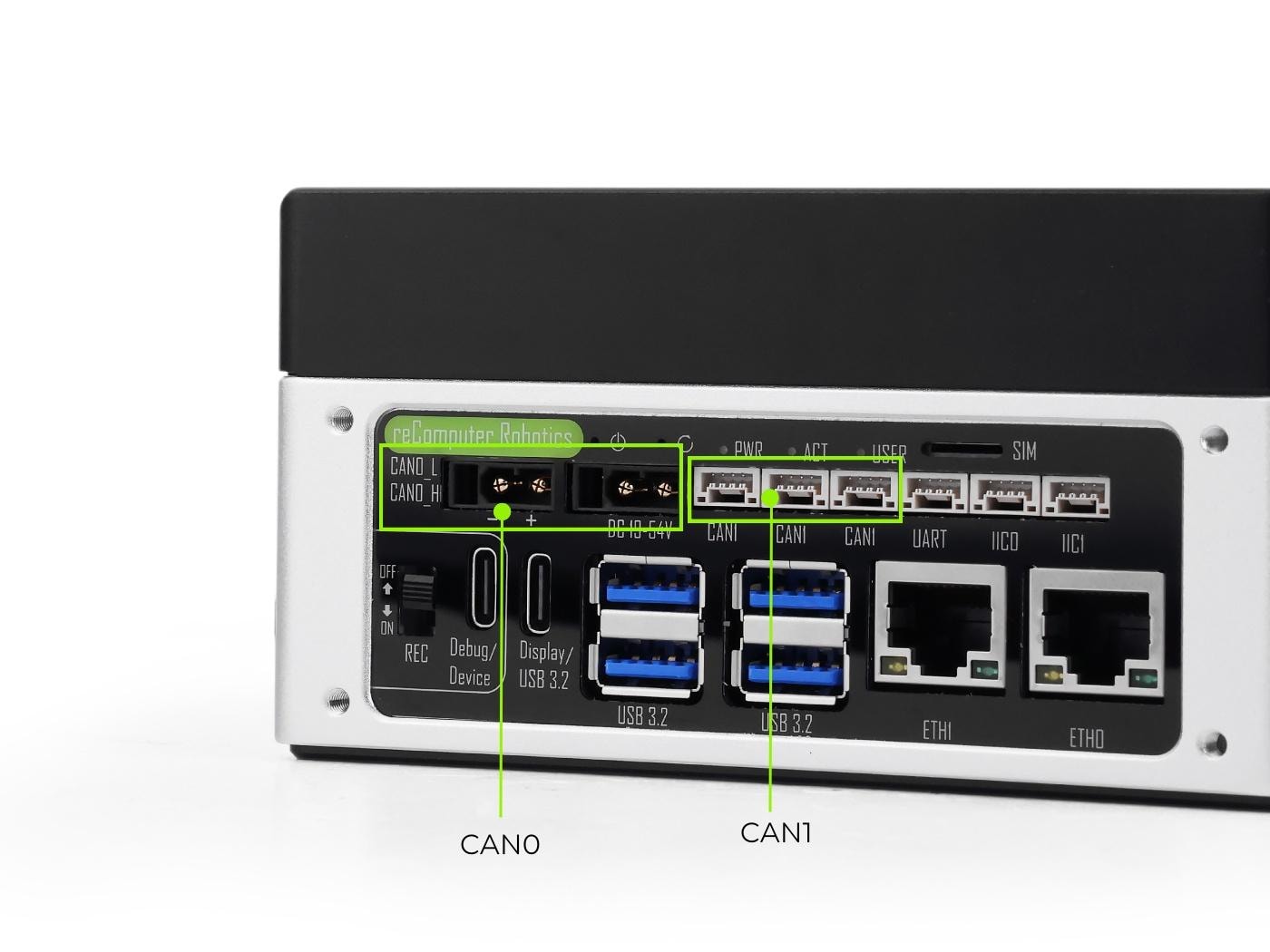

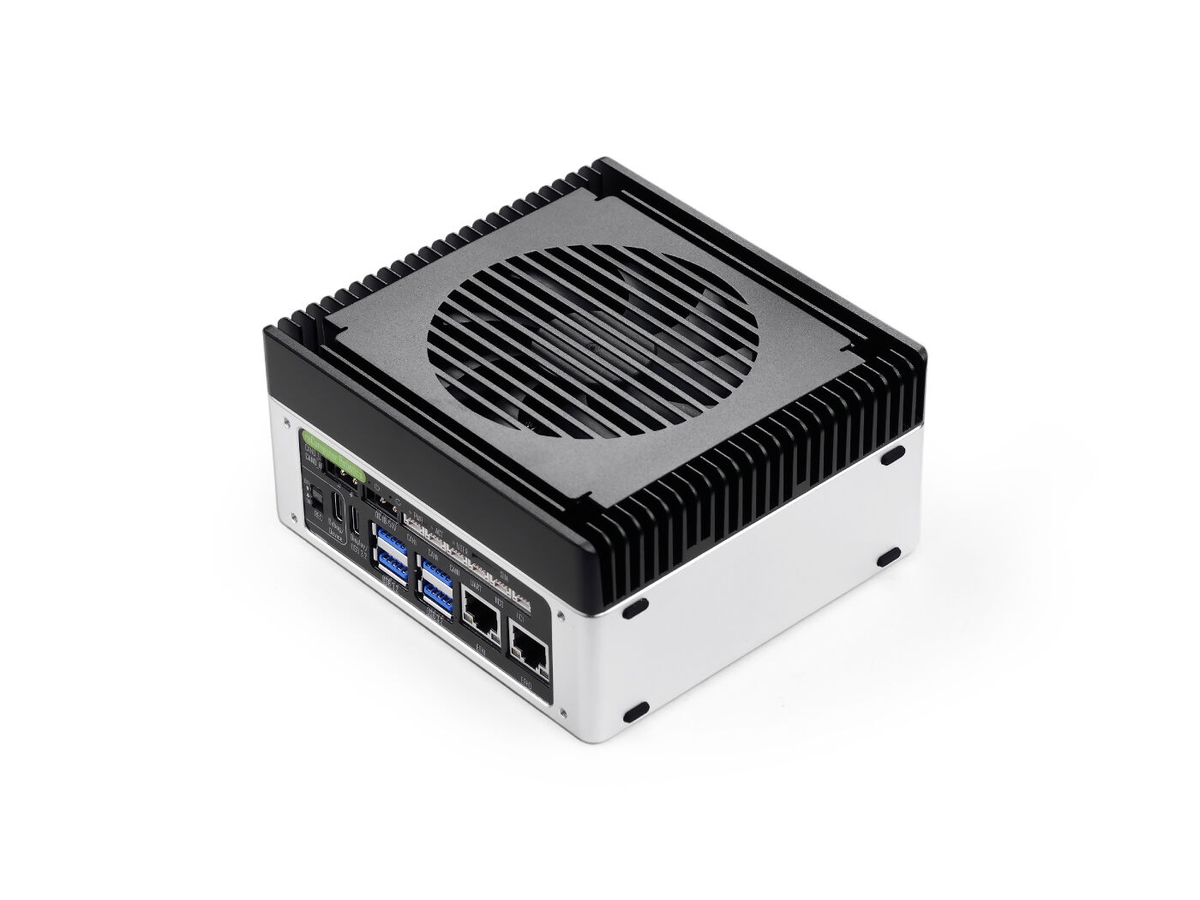

Hardware Overview
Application

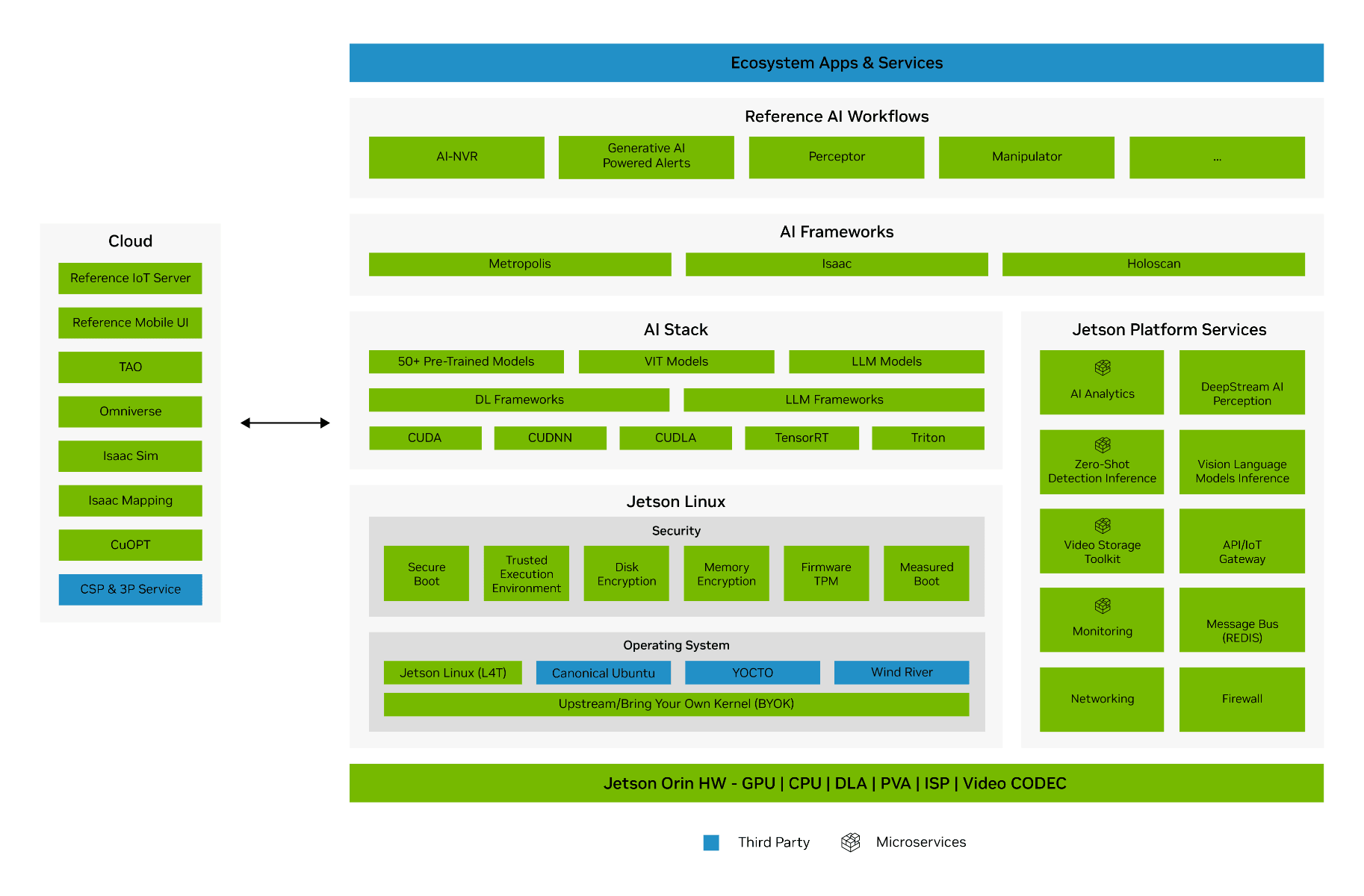

The NVIDIA AI software stack is designed for accelerate AI application and deployment:

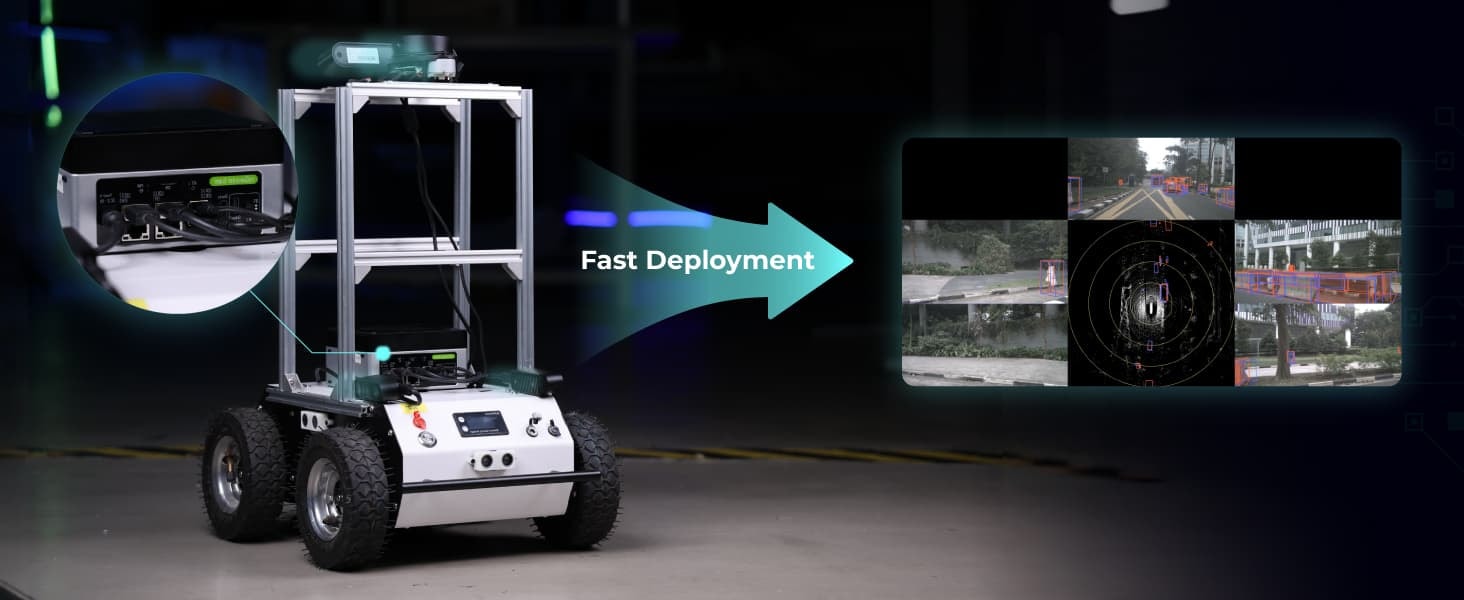

Designed for Edge AI Computer Vision Applications:
Jetson Platform Services provide a platform to simplify development, deployment and management of Edge AI applications on NVIDIA Jetson like BEV sensing demo with 4 USB cameras.
Designed for demanding AI applications:
Such as AMR, smart retail, industrial automation, and video surveillance, smart video analysis scenario
We have Jetson-example prepared for you! It offers one-line deploy projects edge AI applications of generative AI including Ollama, Llama3; computer vision including YOLOv8, and others. We have configured all environment for you to provides single command deployment of projects.
Model Selection
The reComputer Robotics Series offers three models to meet different performance requirements:
| Model | Processor | AI Performance | Memory | Storage |
|---|---|---|---|---|
| J3011 | NVIDIA Jetson Orin Nano | 40 TOPS (MAXN) | 8GB LPDDR5 | 128GB NVMe SSD |
| J4011 | NVIDIA Jetson Orin NX | 100 TOPS (MAXN) | 8GB LPDDR5 | 128GB NVMe SSD |
| J4012 | NVIDIA Jetson Orin NX | 157 TOPS (MAXN) | 16GB LPDDR5 | 128GB NVMe SSD |
All models share the same carrier board design with identical I/O capabilities, ensuring consistent development experience across the series while allowing you to choose the performance level that matches your application requirements.
Module Specifications
| Parameter | reComputer Robotics J3011 | reComputer Robotics J4011 | reComputer Robotics J4012 |
|---|---|---|---|
| Applications Processor (AP) | NVIDIA Jetson Orin Nano 8GB | NVIDIA Jetson Orin NX 8GB | NVIDIA Jetson Orin NX 16GB |
| AI Performance | Orin Nano 8GB – 40 TOPS (MAXN) | Orin NX 8GB – 100 TOPS (MAXN) | Orin NX 16GB – 157 TOPS (MAXN) |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores | ||
| GPU Max Frequency | 625 MHz | 918 MHz | 1173 MHz |
| CPU | 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 | 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 | |
| CPU Max Frequency | 1.5 GHz | 2.0 GHz | |
| DL Accelerator | 2 x NVDLA v2.0 | ||
| DL Max Frequency | 816 MHz | 1.23 GHz | |
| Vision Accelerator | 1 x PVA v2.0 | ||
| Memory | 8GB 128-bit wide LPDDR5 DRAM 68GB/s | 8GB 128-bit wide LPDDR5 DRAM 102.4GB/s | 16GB 128-bit wide LPDDR5 DRAM 102.4GB/s |
| Power | 7W - 15W | 10W - 15W - 25W | 10W - 15W - 25W - 40W |
| Video Encode | 1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265) | ||
| Video Decode | 1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) | ||
| CSI Camera | Up to 4 cameras (8 via virtual channels) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps) | ||
| Mechanical | 69.6mm x 45mm 260-pin SO-DIMM connector | ||
Carrier Board Specifications
| Parameter | Specification |
|---|---|
| Storage | 1x M.2 KEY M PCIe |
| Networking | |
| M.2 KEY E | 1x M.2 Key E for WiFi/Bluetooth module |
| M.2 KEY B | 1x M.2 Key B for 5G module |
| Ethernet | 2x RJ-45 Gigabit Ethernet |
| I/O | |
| USB | 6x USB 3.2 Type-A (5Gbps) 1x USB 3.0 Type-C (Host/DP 1.4) 1x USB 2.0 Type-C (Device Mode Only for Reflash/Debug) |
| CAN | 2x CAN0 (XT30(2+2)) 3x CAN1 (4-Pin GH-1.25 Header) |
| Display | 1x DP1.4 (Type C Host) |
| UART | 1x UART 4-Pin GH-1.25 Header |
| I2C | 2x I2C 4-Pin GH-1.25 Header |
| Fan | 1x 4-Pin Fan Connector (5V PWM) 1x 4-Pin Fan Connector (12V PWM) |
| Extension Port | 1x Camera Expansion Header (for GMSL2 board, not included) |
| RTC | 1x RTC 2-pin 1x RTC Socket |
| LED | 3x LED (PWR, ACT and User LED) |
| Pinhole Button | 1x PWR 1x RESET |
| DIP Switch | 1x REC |
| Antenna Hole | 5x Antenna Hole |
| Power | 19-54V XT30(2+2) (XT30 to 5525 DC Jack Cable included) |
| Jetpack Version | Jetpack 6.2 |
| Mechanical | |
| Dimensions (W x D x H) | 115mm x 115mm x 38mm |
| Weight | 200g |
| Installation | Desk, Wall-mounting |
| Operating Temperature | -20℃~60℃ (25W Mode) -20℃~55℃ (MAXN Mode) (with reComputer Robotics heat sink with fan) |
| Warranty | 2 Years |
| Certification (Pending) | RoHS, REACH, CE, FCC, KC |
